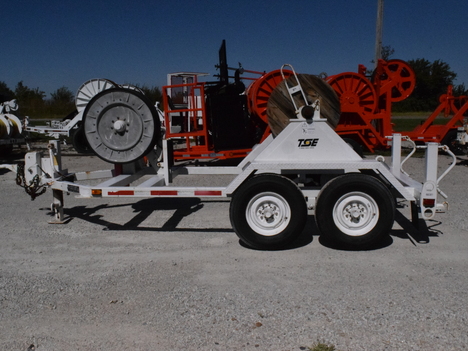

1999 TSE BWPT120-60 Tensioner For Sale

$44,000

Description

Fully hydrostatic drive system.|
Infinitely variable speed and linepull control with
overpull protection.|
Spring applied, hydraulic released holding brakes.|
Self loading rear mounted reel winder.|
Oscillating bullwheel for minimal fleet angle on
conductor or rope.|
Elevated centrally located console for optimum visibility.|
Tandem axle trailer mounted with air brakes.|
Hydraulic front and rear jacks.|
Maximum continuous linepull............12,000 lbs. @ 3MPH.|
Maximum Intermittent linepull...........14,000 lbs.|
Linespeed ......................................... 0-5 MPH Variable.|
Engine ............................................... 160 HP Diesel.|
Bullwheel diameter............................ 60 inches.|
Bullwheel groove diameter ...............1.5 inches.|
Maximum reel size............................ 96" X 68".|
DIMENSIONS & WEIGHT|
BWPT 120-60 WITH CAB.|
Unit Length........................................ 32' 8".|
Unit Width.......................................... 8' 6".|
Unit Height ........................................ 13' 2 ".|
Unit Weight........................................ 37,350 lbs.|

Specifications
