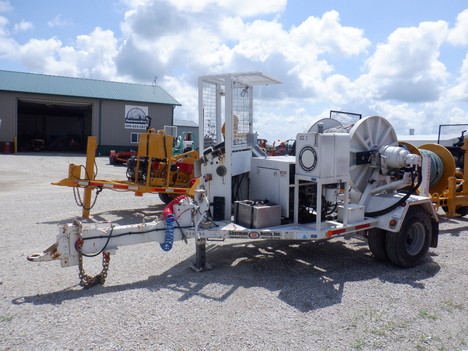

2004 TSE 6811 RW Single Drum Puller For Sale

$24,500

Description

Hard Line can be removed & unit can be used for a heavy reel trailer.|
Rewinding control from the Puller.|
Provides suitable tail tension to P210 Puller.|
1,300 lbs. Line Pull at up to 4.5 MPH.|
Independently operate, hydraulically actuated, payout
brake to prevent overspin during reel payout.|
Anti-rollback device to prevent accidental payout of the
pulling rope during pulling operation.|
Maximum reel capacity: 72 inches diameter x 56 inches
wide and 18,000 lbs.|
Tandem axle trailer mounted (suitable for towing speeds
up to 65 MPH.|
Four 10R22.5 tires rated @ 5,150 lbs. each.|
Reel shafts to be 3 1/2” in diameter with 24” bronze
overspin brake and hydraulically operated caliper.|
Post type levelwind controlled from puller.|
40,000 lbs. swivel with Allen head screw pin
connections.|
25,220 GVW
